The FIADHAICH TD is built for adventure. We have kept things simple, robust and practical. If you want TVs, music systems, ovens and microwaves, you can buy a caravan. “Fiadhaich” means wild in Scottish Gaelic and “TD” stands for “Thar-dùthcha” which means cross country.
no images were found
The camper can be towed by any vehicle which is rated for an unbraked 750kg trailer. If you have a family, our camping trailers provide a base from which to cook and relax and then sleep the night away in a cosy environment. Have a look at our Advice page for more information.
The FIADHAICH TD is slightly bigger than a standard teardrop or squaredrop as these are based on a standard sheet of ply which is 2440mm x 1220mm. Our camper, the body, is 3000mm x 1500mm. These dimensions don’t include the mudguards or “tongue”/drawbar. The slightly larger size means you get more length & width inside for sleeping and more storage both in the cabin and rear storage area. This in turn makes your life easier as you can take more with you and there is more space to cook. If you add an awning or tarp onto the side, you have a nice covered area which definitely will not get blown away on the west coast of Scotland in a wild storm (sarcasm alert! It will if you don’t tie it down!).
There is a roof vent to keep the air inside fresh. We find that there is no need for a heater due to the relatively small space and insulated walls. If you need to increase the ventilation, you can open the roof vent to let more air in.
Aluminium composite skin. The walls are made from an aluminium composite material which is 3mm thick. Behind that, working inwards, there is 25mm of insulation and then 6mm ply followed by the internal carpeting. This system helps keen the weight down, heat in and does not require maintenance.
Composite aluminium outer skin – no wood!
50mm box section and angle steel – Raptor coated
Peak 750kg unbraked suspension units, 5×6.5” PCD
185 70 13 GT SAVERO 106/104 TRAILER TYRE -5 STUD 6.5J RIM
Pressed steel trailer coupling
Jockey wheel with pneumatic tyre
7-pin trailer wiring with plug
E-marked trailer lights
Side marker lights
Steel, coated exoskeleton
Phenolic trailer floor with internal vinyl floor
25mm Foam insulation in walls & ceiling
Internal control panel for lights with 4 USB ports and voltmeter
Main internal LED light
Internal spotlights each side
Light above storage area

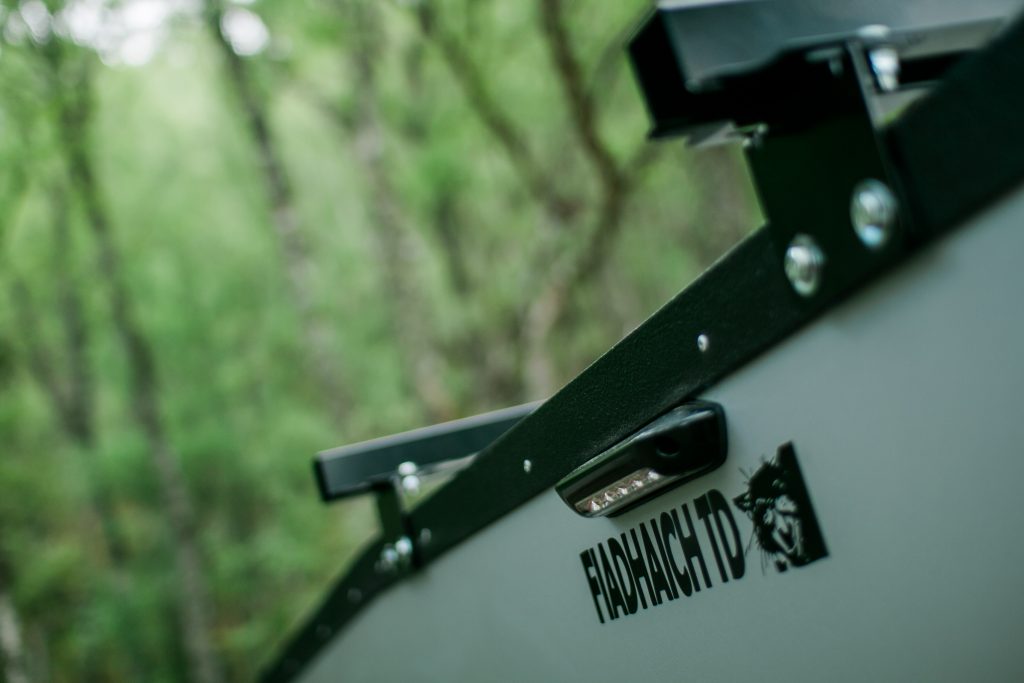

Outside lights both sides
12v auxilliary socket, voltmeter and USB charging sockets
Smart batter charger
Individual circuits with fuses
Doors with windows both sides

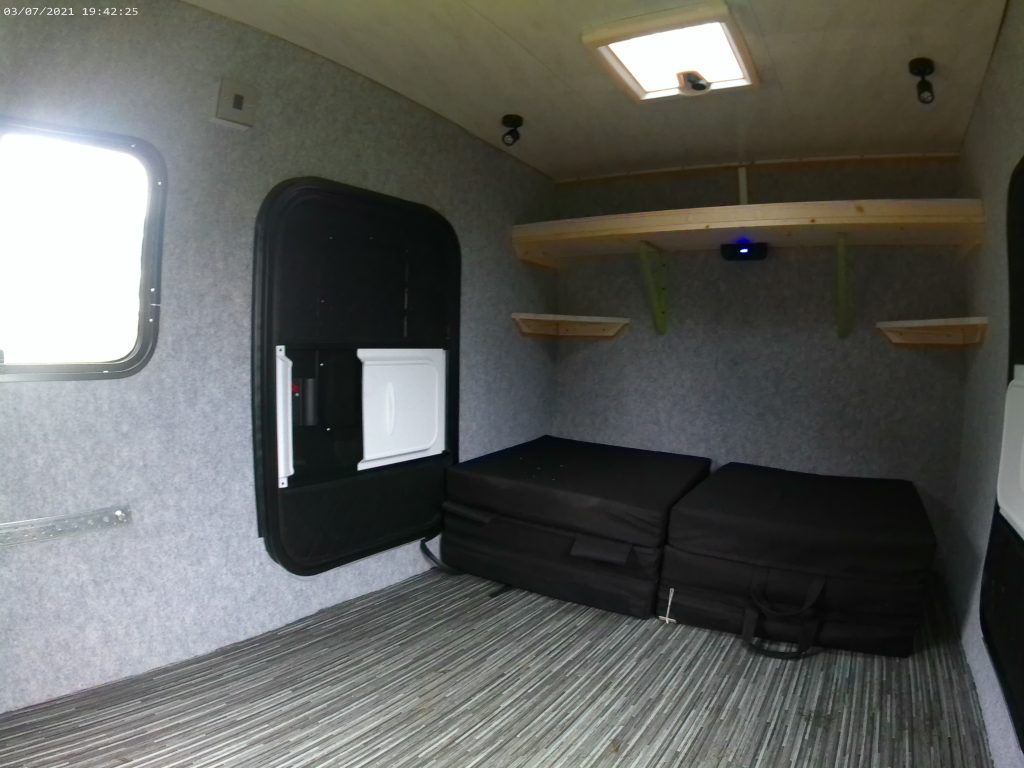

2 Large shelves
Roof vent

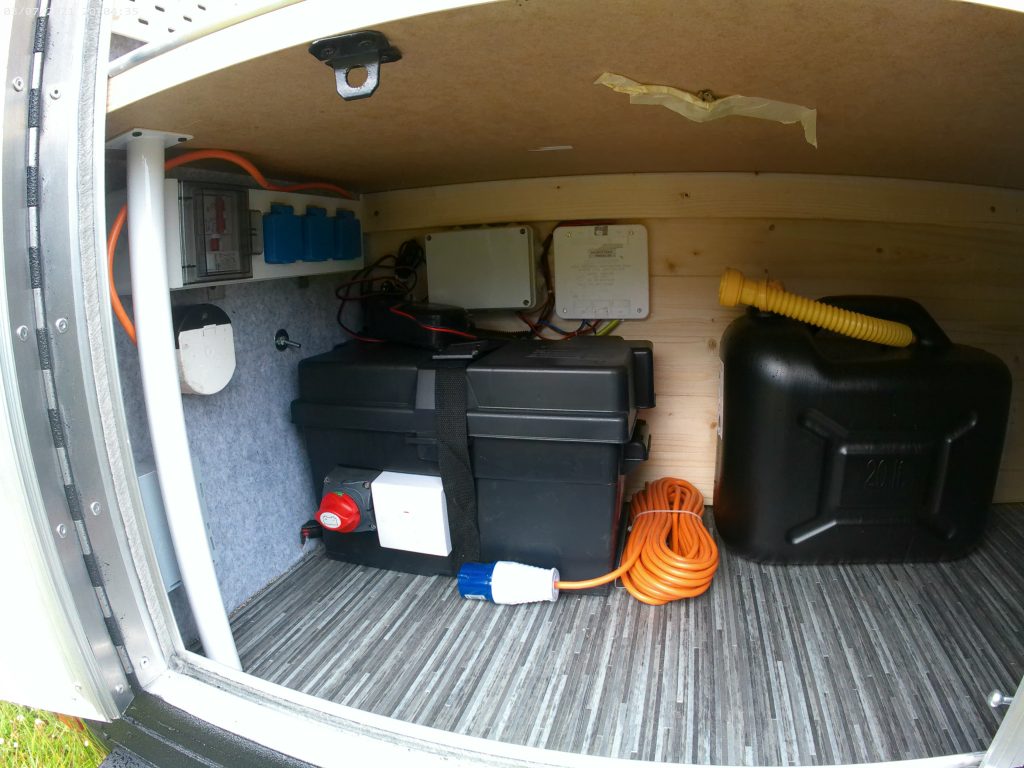

Access to rear storage area
Carpet lining
Side windows, slide opening
CO and smoke alarm
Vinyl flooring
LED outside lights both sides
Aluminium composite skin

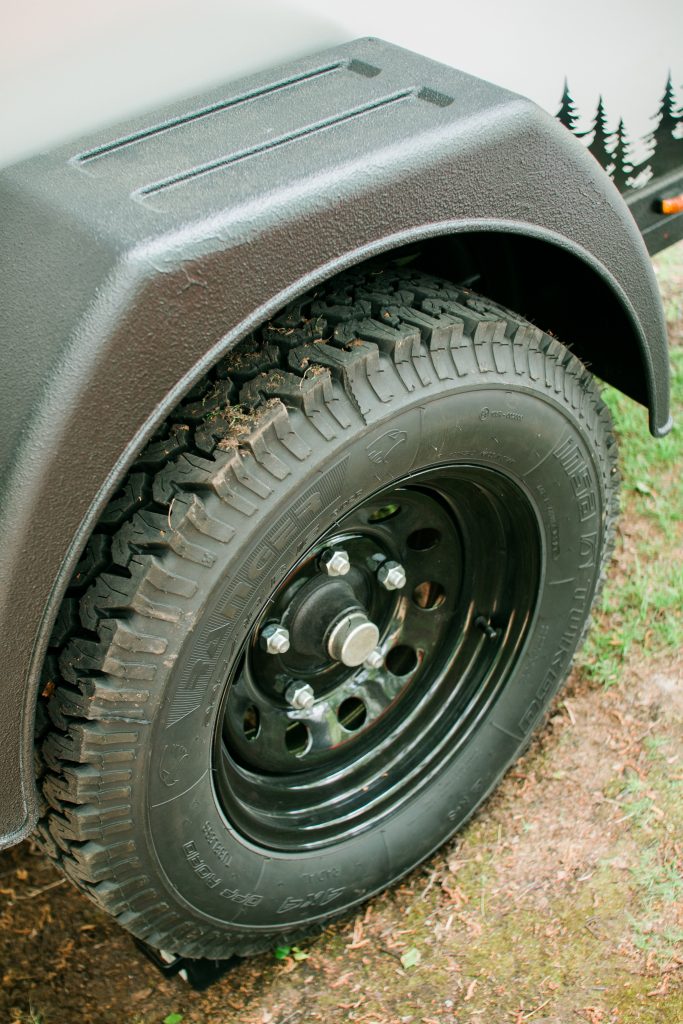

225/75/15 off road tyres
Front legs for stability
Roof bars
Raptor coated edges
Worktop – 60cm deep
LED light
Storage for luggage & cooking equipment
Access hatch to main cabin
Overall length: 4.0m
Overall width: 2.1m
Overall height: 1.95m
Unladen weight: ~600kg
Maximum permissible weight: 750kg
Body external length: 3.0m
Body external width: 1.5m
Body external height: 1.4m
You can specify certain items you want to add to your build, or some you would like to remove which may reduce the cost and weight. Please get in touch for more information.
